WINSHIELD® PVC film – is a specially developed PVC (polyvinyl chloride) / PMMA (polymethylmethacrylate) film for laminating the windows, doors, panels and other products, both for external and internal use.
Products of WINSHIELD® brand has become popular because of its unique design capabilities, strength, flexibility, reliability and ease of use.
A wide range of contemporary colors of wood texture makes the coating an indispensable finishing material. Working with WINSHIELD® PVC film is quick and easy.
Over the years, it does not require any additional care, while maintaining the excellent appearance.
WINSHIELD® PVC film offers new opportunities for decorating the profiles and panels:
- colors, design and textures become a decoration for any construction elements and give them an elegant and unique look;
- laminated with the film windows and doors emphasize the architectural style;
- a wide range of design solutions provides space for creativity and individual search;
- window and door constructions, decorated with WINSHIELD® PVC film, blend more harmoniously and aesthetically with the interior and exterior spaces, creating an original design.
Structure of WINSHIELD UVX®
Excellent design properties of WINSHIELD® PVC film – is its main, but not the only advantage.
WINSHIELD® PVC film is a two-layer coating. In the base of its structure is polyvinyl chloride (PVC). Externally WINSHIELD® PVC film is covered with a transparent polymethyl methacrylate (PMMA).
The availability of the acrylic layer ensures the weatherproof (not sensitive to temperature changes, to the cold, heat, moisture, etc.), as well as the protection from color fading under the influence of harmful UV (ultraviolet) radiation. Thanks to the polymethylmethacrylate, WINSHIELD® PVC film is suitable for outdoor use and is a durable material.
The next generation - WINSHIELD PVDF™ has three layers: PVC (polyvinyl chloride) + PMMA (polymethylmethacrylate) + PVDF (polyvinylidenfluoride).
Polyvinyliden fluoride (PVDF) significantly increases the level of protection of the film from UV radiation and weather influences. WINSHIELD PVDF™ is more resistant to extreme environmental conditions, UV (ultraviolet) rays and is a durable in service coating.
WINSHIELD® PVC film is specifically developed to provide an attractive and durable coating of the windows and doors from PVC, aluminum profiles and lining ("sandwich") panels.
All WINSHIELD® PVC film is manufactured on the basis of qualitative semi-rigid polyvinyl chloride, has an acrylic layer that protects against UV rays, and ensures the color stability during the external use.
Usage the latest Color Shield™ technology protects the frames of windows from heat (infrared radiation), which cause the deformation of structures. Due to the high heat and weathering resistance, WINSHIELD® PVC film is ideal for use in harsh climates.
Stable colors and a lasting surface of WINSHIELD® PVC film ensure long-term operation in any conditions.
WINSHIELD® PVC films provide the manufacturers of PVC window profiles with the high quality and aesthetic production. These laminates are durable, do not require additional maintenance and guarantee a non-competitive design of the products.
Technical specifications
Roll width
580, 660, 1160, 1320 mm
Roll length
From 400 to 600 running meters
Thickness
DIN 53353 - 0.20 + -0.015 mm. Thickness of the upper acrylic layer DIN 53353 - not less than 50 microns.
Weatherproof
Complies with RAL - GZ 716 requirements (1st section 1, part 7), based on the artificial climatic tests carried out in accordance with DIN EN 513 at a dose of light irradiation of 16 GJ/m². The film is suitable for use after 11,000 hours of irradiation with UV-rays of the UV-A lamp in a climatic chamber of the QUV device when the wave-length is 340 nm in accordance with ASTM G53.
Gloss
17-24 scale units (measurement angle - 60°С).
Heat resistance
Embossing, color and shine of the material do not change with short-term influence of high temperatures (100°C - 10 min) or with the influence of moderate temperature (65°C - 24 h).
Welding
of the profiles is carried out in accordance with the instructions, which do not allow damaging to the film. Bending of the profile at a temperature of 130°C or higher may lead to the increase of the gloss of the product surface.
Percent elongation
When you break through the length and breadth of -100 mm/min DIN 53377 - not less than 80%.
Ultimate strength limit
When you break through the length and breadth of 100 mm/min DIN 53377 - not less than 20 n/mm².
Shrinkage
DIN 53377 - Max. 4 at 100°C, 10 min.; Max. 2.5 at 60°C for 10 min.
Chemical resistance
Resistant to household detergents and cleaning products, fats, oils, food, water-based fluids and building materials such as plaster, cement, aliphatic gasoline. Unstable to the organic solvents and substances that contain them.
Care instructions
Recommended is the care using household tools (except abrasive products). Other types of care requires.
Certification

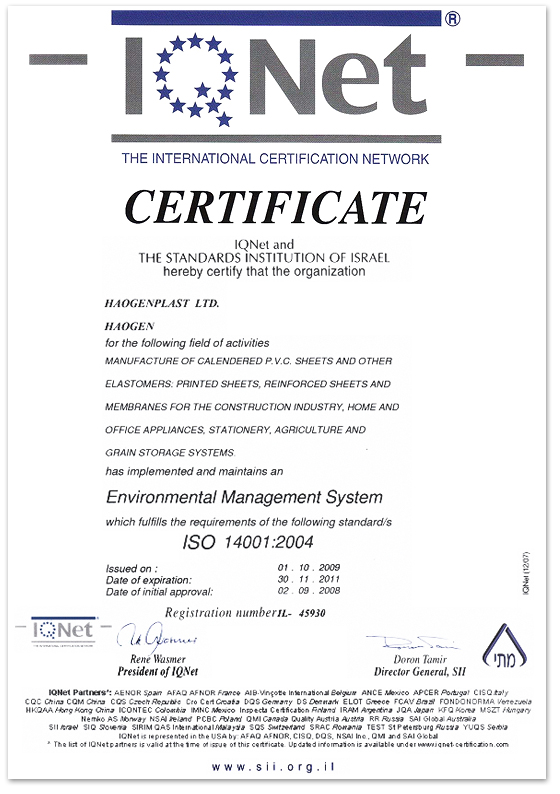

The products are environmentally friendly, certified: ISO 9001, RAL, Din SKZ, CE, BBA, ICI, FM, CSTB, UL, ETA and others.
The state from the sanitary-epidemiological expertise from MOZ of Ukraine 05.03.02-03/60577. Country of manufacturing – Israel, kibbutz Haogen.
Click on photo to zoom it
WINSHIELD. Decorativne pokrittya» booklet
«WINSHIELD. Decorativne pokrittya» («WINSHIELD. Decorative cover») booklet can be downloaded in pdf, clicking on the picture below (file size 390KB). Or a copy of the booklet can be ordered by phone: +38 (044) 456 9444
Decorative features of WINSHIELD® PVC film delight the eyes of the owners over years, thanks to the Color Shield technology. It is known that a PVC profile, laminated with PVC films of dark colors becomes more heated, in contrast to white color, which reflects the heat. However, the temperature inside the window profile remains low. To prevent the deformation caused by an imbalance of temperatures, all WINSHIELD® PVC films are produced using the latest technology of Color Shield. The essence of the technology is in the use of special pigments that reflect the infrared radiation from WINSHIELD® PVC film. Thus, through the use of WINSHIELD® PVC foil, the temperature of the window profile surface is reduced by 20% or more.
WINSHIELD® PVC film is also resistant to the chemical effect. WINSHIELD® PVC film does not change its properties when it is in contact with household cleaners and detergents. WINSHIELD® PVC foil is not afraid of fats, oils, foodstuffs, water-based fluids and materials, such as plaster, cement, aliphatic gasoline. However, it should be noted that the WINSHIELD® PVC film is not resistant to organic solvents and substances that contain them.
Assortment of colors of WINSHIELD® PVC film is constantly expanding. Strength, durability and ease of operation of WINSHIELD® PVC foil has been appreciated by hundreds of manufacturers of window profiles. With all the advantages of WINSHIELD® PVC films they acquaint themselves at specialized exhibitions in Europe, particularly in Ukraine.
